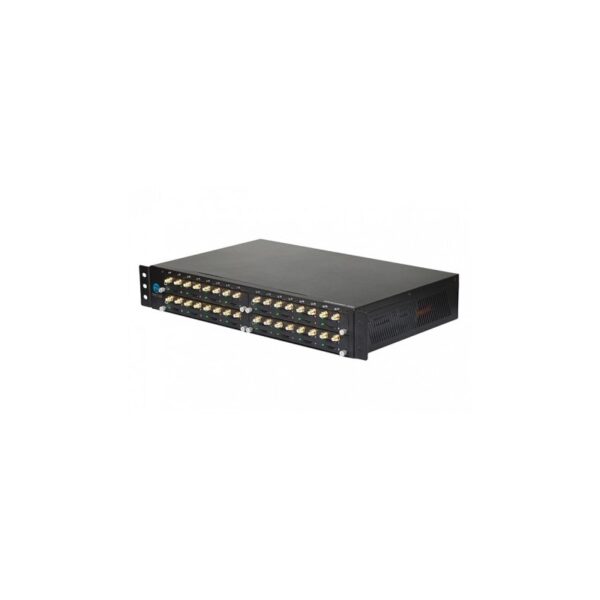

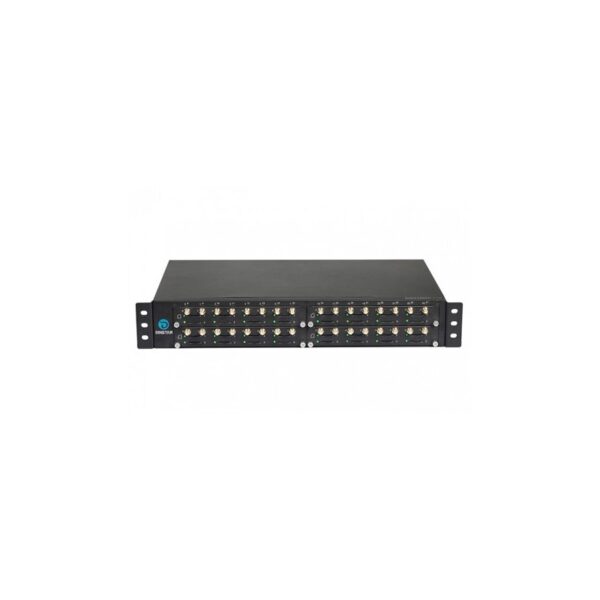

Gateway SIP GSM Dinstar Para 32 Simcard

Descripción

El Gateway 3GSM – SIP de 32 puertos es un equipo ideal para conexión a servidores Asterisk, softswitches o centrales telefónicas IP

• Permite programación mediante acceso via LAN con una dirección IP en su red y su interacción con el servidor es 100% digital a través de protocolo SIP.
• Permite recepción de llamadas entrantes y opera en los rangos de bandas GSM 900/1800 y 850/1900.
• Permite programar envio de SMS automático para controlar saldo de minutos en SIM cards con planes celulares abiertos o para manejar bolsas de minutos.
• Este equipo se puede configurar con direcciones IP publicas o privadas si desea tener acceso remoto o enlazar desde otra ubicación con su servidor Asterisk o Softswitch.
• 32 GSM/CDMA/WCDMA Channels
• Support to different mobile networks:
• GSM: 850/900/1800/1900MHz;
• CDMA: 800MHz; WCDMA: 850/900/1900/2100MHz
• HTTP API for SMS Application Integration
• SMS to Email and Email to SMS
• Flexible Dial Rules and Manipulation Rules

• Voice Processing

  • Protocol: SIP v2.0, RFC3261
  • Codecs:G.711A/U law, G.723.1, G.729A/B
  • Silence Suppression
  • Comfort Noise Generator(CNG)
  • Voice Activity Detection(VAD)
  • Echo Cancellation: G.168 with up to 128ms
  • Dynamic Jitter Buffer
  • DTMF: RFC2833, SIP Info
  • Call Progress Tone Generation
  • Programmable Gain Control
  • NAT: STUN, Dynamic NAT, Static NAT
  Mobile
  • SIM Interface: 1.8v, 3.0v SIM Interface
  • Frequency Range:
    GSM: 850/900/1800/1900MHz;
    CDMA: 800MHz
    WCDMA:850/900/1900/2100MHz
  • USSD Encoding: Unicode/ASCII
  • HTTP API for SMS
  • Polarity Reversal
  • PIN Modify
  • CID/CLIR
  • SMS Send and Receive
  • SMS to Email
  • Call Waiting/Call Back
  • Call Forward
  • GSM Audio Coding: HR, FR,EFR, AMR_FR,AMR_HR

  Software Features

  • Calling Type:

     Mobile to VoIP, VoIP to Mobile

  • SIP Trunk and Trunk Group

  • Caller/Called Number Manipulation Rules

  • SIP Codes Mapping

  • White/Black List

  • PSTN Hotline

  • VoIP Hotline

  • Abnormal Call Monitor

  • Call Minutes Limitation for Ports/Single Call

  • Balance Check

  • Low Balance Alarm

  • Auto Update SIM Number

  • Random Call Interval

  • Auto CLIP

  • Signaling & RTP Encryption

  • SMPP for SMS

  Network
  • Static IP, DHCP Client, PPPoE
  • Network Protocols:
  • TCP/UDP,TFTP, FTP, RTP/ RTCP, SSH,ARP,RARP,ICMP Ping, NTP, HTTP, DNS
  • Static/Dynamic ARP Request

  Maintenance

  • Web/Telnet Configuration

  • Configure Backup/Restore

  • Firmware Upgrade by HTTP/TFTP

  • Factory Reset

  • CDR (10000 Lines CDRs Storage Locally)

  • Syslog/Filelog

  • Ping and Tracert

  • Traffic statistics: TCP,UDP,RTP

  • VoIP Call Statistics

  • PSTN Call statistics: ASR,ACD,PDD

  • Voice Diagnose with Loopback

  • GSM Network Test

  • IVR Customization

  • Auto Provisioning

  • SIP/RTP/PCM Capture

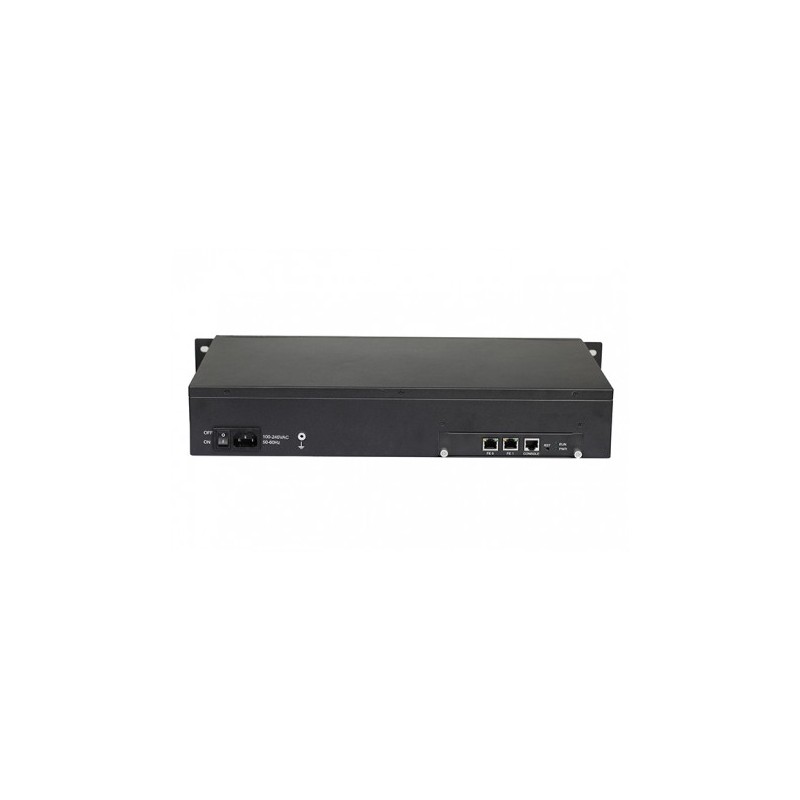

  Physical Interface

  • Mobile: 32 Channels

  • Antennas Connectors: SMA

  • Ethernet Interfaces:2*10/100 Base-T, RJ45

  • LED Indicators: Power, RUN, Signal Strength Indicators

  • Console:1* RS232 115200bps

  Environmental

  • Power Supply

    Input:100-240V,50-60Hz

  • Power Consumption: 68w

  • Temperature(Operation): 0 ℃  ~ 45 ℃

                       (Storage): -20 ℃ ~80 ℃

  • Operation Humidity: 10%-90% No Condensation

  • Dimension(W/D/H): 440×270×75mm

  • Weight: 4.7kg

  • Package Weight: 8.2kg
